BUX11 - SILICON POWER TRANSISTOR

📥 Download Datasheet

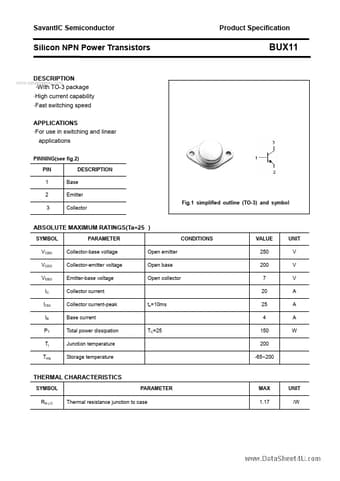

Preview of BUX11 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BUX11
Manufacturer SavantIC
File Size 138.43 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet BUX11_SavantIC.pdf

BUX11 Product details

Description

With TO-3 package High current capability Fast switching speed APPLICATIONS For use in switching and linear applications PINNING(see fig.2) PIN 1 2 3 DESCRIPTION Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol ABSOLUTE MAXIMUM RATINGS(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Total power dissipation Junction temperat
