BU2520DX - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of BU2520DX PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BU2520DX
Manufacturer SavantIC
File Size 175.46 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet BU2520DX_SavantIC.pdf

BU2520DX Product details

Description

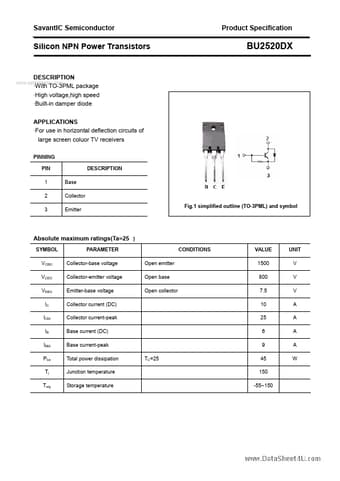

With TO-3PML package High voltage,high speed Built-in damper diode APPLICATIONS For use in horizontal deflection circuits of large screen coluor TV receivers PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB IBM Ptot Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-peak Base current (
