BU2506AX - SILICON POWER TRANSISTOR

Description

With TO-3PML package High voltage;high speed APPLICATIONS

For use in horizontal deflection circuits of colour TV receivers.

📥 Download Datasheet

Datasheet Details

Part number BU2506AX
Manufacturer SavantIC
File Size 173.99 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet BU2506AX Datasheet

📁 Similar Datasheet

  • BU2506AX - NPN Transistor (INCHANGE)
  • BU2506AF - NPN Transistor (INCHANGE)
  • BU2506 - Bridge Rectifiers (Vishay)
  • BU2506-E3 - Bridge Rectifiers (Vishay)
  • BU2506-M3 - Bridge Rectifiers (Vishay)
  • BU2506DF - Silicon Diffused Power Transistor (NXP)
  • BU2506DF - NPN Transistor (INCHANGE)
  • BU2506DX - Silicon Diffused Power Transistor (NXP)
  • BU2506DX - NPN Transistor (INCHANGE)
  • BU2506FV - 10bit 8ch/10ch D/A Converters (Rohm)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text

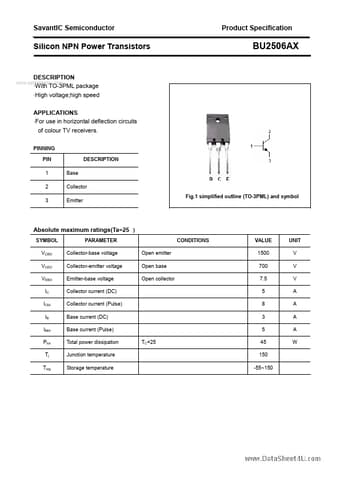

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors BU2506AX www.datasheet4u.com DESCRIPTION ·With TO-3PML package ·High voltage;high speed APPLICATIONS ·For use in horizontal deflection circuits of colour TV receivers. PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB IBM Ptot Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current (Pulse) Base current (DC) Base current (Pulse) Total power dissipation Junction temperature Storage temperature TC=25 Open emitter Open base Open collector CONDITIONS VALUE 1500 700 7.
