BD231 - SILICON POWER TRANSISTOR

📥 Download Datasheet

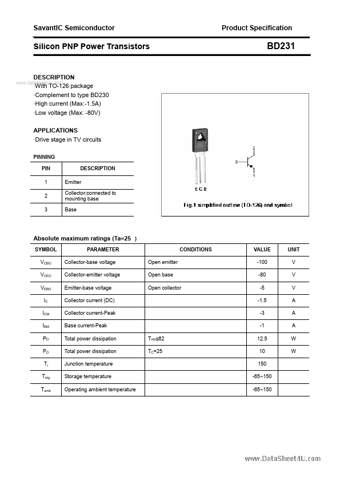

Preview of BD231 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BD231
Manufacturer SavantIC
File Size 135.90 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet BD231_SavantIC.pdf

BD231 Product details

Description

With TO-126 package Complement to type BD230 High current (Max:-1.5A) Low voltage (Max: -80V) APPLICATIONS Drive stage in TV circuits PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IBM PD PD Tj Tstg Tamb PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-Peak Base current-Peak Total power dissipation Total
