A1718 - 2SA1718

Description

With TO-220F package

High DC current gain.

Low collector saturation voltage.

DARLINGTON APPLICATIONS Ideal for motor drviers and solenoid drivers application PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum

📥 Download Datasheet

Datasheet Details

Part number A1718
Manufacturer SavantIC
File Size 257.47 KB
Description 2SA1718
Datasheet download datasheet A1718 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A1710 2SA1710 Sanyo
A1714 VHF/UHF Triode GEC
A1714 Planar Triode Marconi
A17 10 TO 1000 MHz CASCADABLE AMPLIFIER Tyco Electronics
A170 SILICON RECTIFIER Powerex Power Semiconductors

Other Datasheets by SavantIC

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

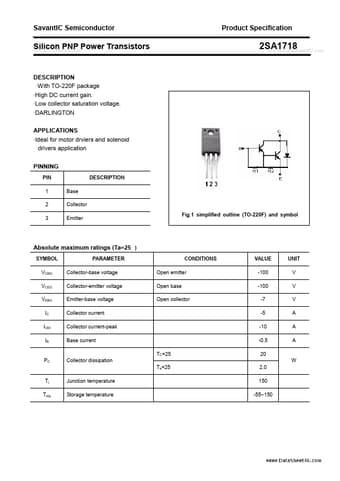

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SA1718 www.DataSheet4U.com DESCRIPTION ·With TO-220F package ·High DC current gain. ·Low collector saturation voltage. ·DARLINGTON APPLICATIONS ·Ideal for motor drviers and solenoid drivers application PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current TC=25 PC Collector dissipation Ta=25 Tj Tstg Junction temperature Storage temperature 2.0 150 -55~150 CONDITIONS Open emitter Open base Open collector VALUE -100 -100 -7 -5 -10 -0.
