2SD2196 - SILICON POWER TRANSISTOR

The 2SD2196 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SD2196 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SD2196
Manufacturer SavantIC
File Size 167.06 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD2196_SavantIC.pdf
Additional preview pages of the 2SD2196 datasheet.

2SD2196 Product details

Description

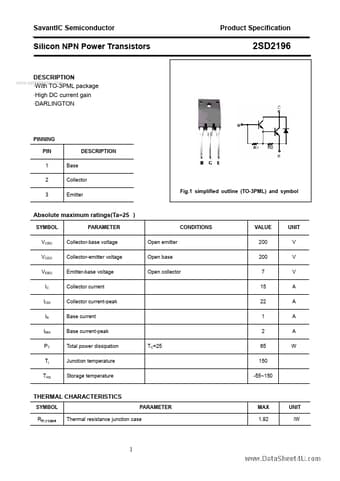

With TO-3PML package High DC current gain DARLINGTON PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB IBM PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Base current-peak Total power dissipation Junction temperature Storage temperature TC=25 Open emitter Open base Open
