Datasheet Details
| Part number | 2SD1414 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 156.42 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SD1414_SavantIC.pdf
|
| Part number | 2SD1414 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 156.42 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
2SD1414_SavantIC.pdf
|

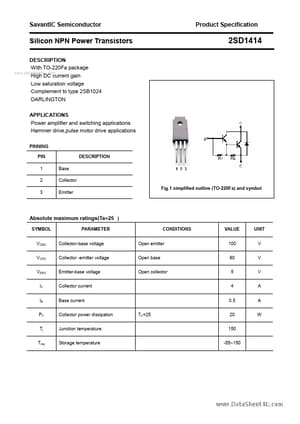

With TO-220Fa package www.datasheet4u.com High DC current gain Low saturation voltage Complement to type 2SB1024 DARLINGTON APPLICATIONS Power amplifier and switching applications Hammer drive,pulse motor drive applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION 2SD1414 Fig.1 simplified outline (TO-220Fa) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector -emitter voltag
