2SC3420 - SILICON POWER TRANSISTOR

📥 Download Datasheet

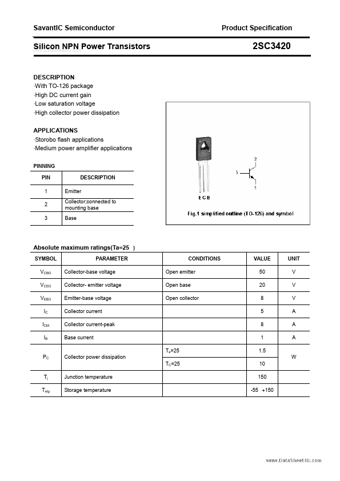

Preview of 2SC3420 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC3420
Manufacturer SavantIC
File Size 170.91 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3420_SavantIC.pdf

2SC3420 Product details

Description

With TO-126 package High DC current gain Low saturation voltage High collector power dissipation APPLICATIONS Storobo flash applications Medium power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector- emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Ta=25 PC Collect
