| Part number | 2SC3212A, 2SC3212 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 146.16 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SC3212_SavantIC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2SC3212A, 2SC3212. Please refer to the document for exact specifications by model. |

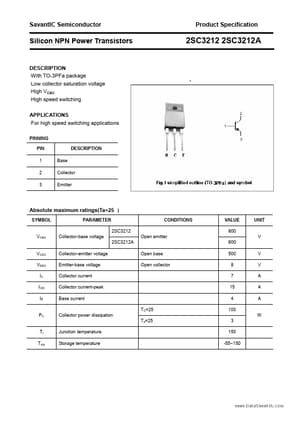

With TO-3PFa package Low collector saturation voltage High VCBO High speed switching APPLICATIONS For high speed switching applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC3212 VCBO Collector-base voltage 2SC3212A VCEO VEBO IC ICM IB Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperatu
