2SC3157 - SILICON POWER TRANSISTOR

Description

With TO-220 package High switching speed Low collector saturation voltage Complement to type 2SA1261 APPLICATIONS For high voltage ,high speed and power switching applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO

📥 Download Datasheet

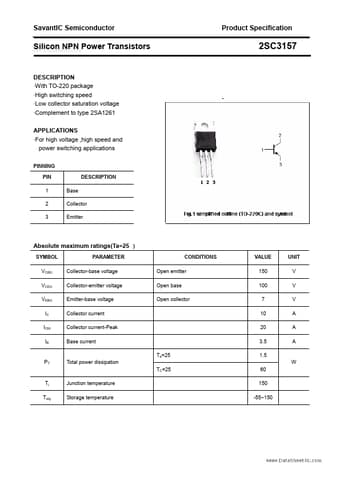

Datasheet preview – 2SC3157

Datasheet Details

Part number 2SC3157
Manufacturer SavantIC
File Size 130.72 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3157 Datasheet
Additional preview pages of the 2SC3157 datasheet.

📁 Similar Datasheet

  • 2SC3157 - NPN Transistor (INCHANGE)
  • 2SC3150 - NPN Transistor (Sanyo Semicon Device)
  • 2SC3150 - NPN Transistor (INCHANGE)
  • 2SC3150A - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3151 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC3151 - NPN Transistor (INCHANGE)
  • 2SC3152 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC3152 - NPN Transistor (INCHANGE)
  • 2SC3153 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC3153 - NPN Transistor (INCHANGE)
Other Datasheets by SavantIC
  • 2SC3150 - SILICON POWER TRANSISTOR
  • 2SC3151 - SILICON POWER TRANSISTOR
  • 2SC3152 - SILICON POWER TRANSISTOR
  • 2SC3153 - SILICON POWER TRANSISTOR
  • 2SC3156 - Silicon NPN Power Transistors
  • 2SC3159 - SILICON POWER TRANSISTOR
  • 2SC3117 - SILICON POWER TRANSISTOR
  • 2SC3144 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text
SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3157 DESCRIPTION ·With TO-220 package ·High switching speed ·Low collector saturation voltage ·Complement to type 2SA1261 APPLICATIONS ·For high voltage ,high speed and power switching applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-Peak Base current Ta=25 PT Total power dissipation TC=25 Tj Tstg Junction temperature Storage temperature 60 150 -55~150 CONDITIONS Open emitter Open base Open collector VALUE 150 100 7 10 20 3.5 1.5 W UNIT V V V A A A SavantIC Semiconductor www.DataSheet4U.
