2SC3092 - SILICON POWER TRANSISTOR

The 2SC3092 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SC3092 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC3092
Manufacturer SavantIC
File Size 151.00 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3092_SavantIC.pdf
Additional preview pages of the 2SC3092 datasheet.

2SC3092 Product details

Description

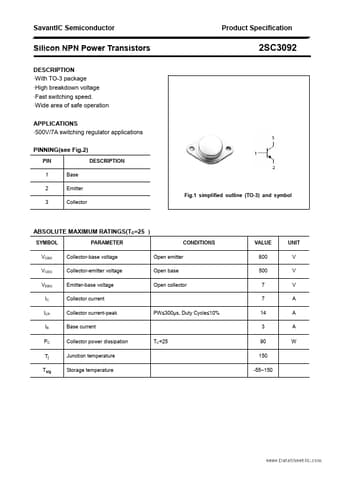

With TO-3 package High breakdown voltage Fast switching speed. Wide area of safe operation APPLICATIONS 500V/7A switching regulator applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter DESCRIPTION 2SC3092 Fig.1 simplified outline (TO-3) and symbol Collector ABSOLUTE MAXIMUM RATINGS(TC=25 ) SYMBOL VCBO VCEO VEBO IC ICP IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Co
