2SC3090 - SILICON POWER TRANSISTOR

The 2SC3090 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SC3090 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC3090
Manufacturer SavantIC
File Size 224.75 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3090_SavantIC.pdf
Additional preview pages of the 2SC3090 datasheet.

2SC3090 Product details

Description

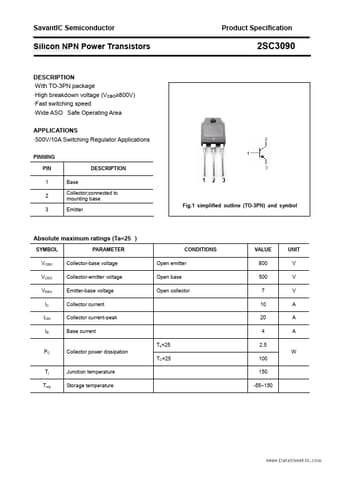

With TO-3PN package High breakdown voltage (VCBO 800V) Fast switching speed Wide ASO Safe Operating Area APPLICATIONS 500V/10A Switching Regulator Applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Ba
