2SC2275 - SILICON POWER TRANSISTOR

The 2SC2275 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SC2275 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC2275
Manufacturer SavantIC
File Size 122.15 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2275_SavantIC.pdf
Additional preview pages of the 2SC2275 datasheet.

2SC2275 Product details

Description

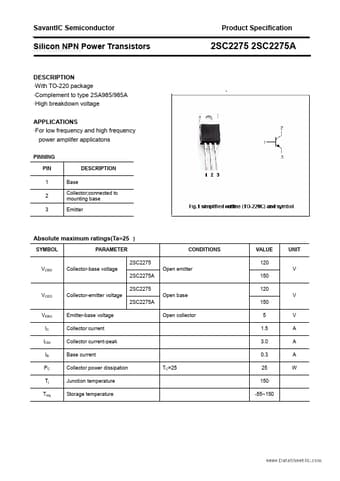

With TO-220 package Complement to type 2SA985/985A High breakdown voltage APPLICATIONS For low frequency and high frequency power amplifer applicatons PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC2275 VCBO Collector-base voltage 2SC2275A 2SC2275 VCEO Collector-emitter voltage 2SC2275A VEBO IC ICM IB PC Tj Tstg Emitter-base voltage Collector current Collector current-peak Base current Coll
