2SB744A - SILICON POWER TRANSISTOR

Download the 2SB744A datasheet PDF. This datasheet also covers the 2SB744 variant, as both devices belong to the same silicon power transistor family and are provided as variant models within a single manufacturer datasheet.

Description

With TO-126 package Complement to type 2SD794/794A Excellent hFE linearity APPLICATIONS For audio frequency power amplifier and general purpose applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO PA

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SB744_SavantIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2SB744A
Manufacturer SavantIC
File Size 161.84 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB744A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB744 PNP SIlicon Power Transistor MCC
2SB744 PNP Transistor INCHANGE
2SB740 PNP Transistor Hitachi Semiconductor
2SB740 PNP Transistor Renesas
2SB743 PNP Transistor INCHANGE

Other Datasheets by SavantIC

Part Number Description
2SB744 SILICON POWER TRANSISTOR
2SB743 SILICON POWER TRANSISTOR
2SB747 SILICON POWER TRANSISTOR
2SB703 SILICON POWER TRANSISTOR
2SB705 Silicon PNP Power Transistors

Full PDF Text Transcription

Click to expand full text

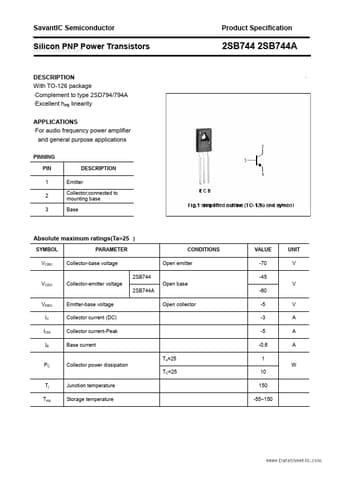

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SB744 2SB744A · DESCRIPTION With TO-126 package ·Complement to type 2SD794/794A ·Excellent hFE linearity APPLICATIONS ·For audio frequency power amplifier and general purpose applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO PARAMETER Collector-base voltage 2SB744 VCEO Collector-emitter voltage 2SB744A VEBO IC ICM IB Emitter-base voltage Collector current (DC) Collector current-Peak Base current Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction temperature Storage temperature 10 150 -55~150 Open collector Open base -60 -5 -3 -5 -0.
