2SB1559 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SB1559 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB1559
Manufacturer SavantIC
File Size 201.70 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1559_SavantIC.pdf

2SB1559 Product details

Description

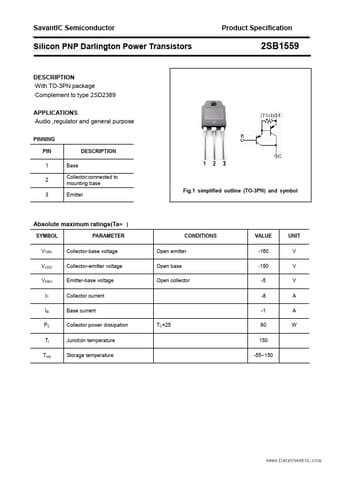

With TO-3PN package Complement to type 2SD2389 APPLICATIONS Audio ,regulator and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDIT
