2SB1230 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SB1230 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB1230
Manufacturer SavantIC
File Size 173.21 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1230_SavantIC.pdf

2SB1230 Product details

Description

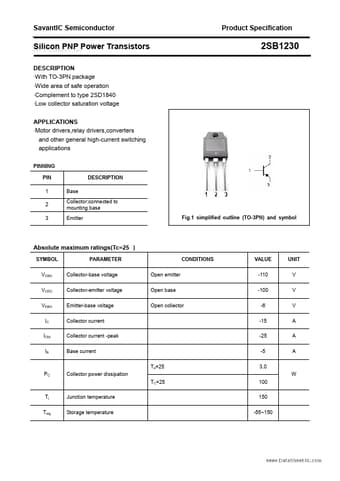

With TO-3PN package Wide area of safe operation Complement to type 2SD1840 Low collector saturation voltage APPLICATIONS Motor drivers,relay drivers,converters and other general high-current switching applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION 2SB1230 Fig.1 simplified outline (TO-3PN) and symbol Absolute maximum ratings(Tc=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage E
