2SB1018 - SILICON POWER TRANSISTOR

Description

With TO-220Fa package Low saturation voltage Complement to type 2SD1411 APPLICATIONS High current switching applications Power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings

📥 Download Datasheet

Datasheet Details

Part number 2SB1018
Manufacturer SavantIC
File Size 160.92 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1018 Datasheet

📁 Similar Datasheet

  • 2SB1018 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB1018 - PNP Transistor (INCHANGE)
  • 2SB1018A - TRANSISTOR (Toshiba Semiconductor)
  • 2SB1018A - PNP Transistor (INCHANGE)
  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1015 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SB1015 - PNP Transistor (INCHANGE)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text

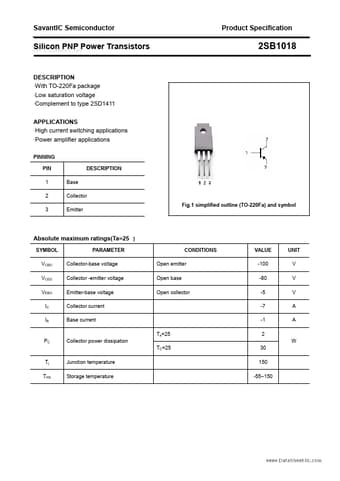

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SB1018 DESCRIPTION ·With TO-220Fa package ·Low saturation voltage ·Complement to type 2SD1411 APPLICATIONS ·High current switching applications ·Power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PARAMETER Collector-base voltage Collector -emitter voltage Emitter-base voltage Collector current Base current Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction temperature Storage temperature 30 150 -55~150 CONDITIONS Open emitter Open base Open collector VALUE -100 -80 -5 -7 -1 2 W UNIT V V V A A SavantIC Semiconductor www.DataSheet4U.
