2SA963 - Silicon POwer Transistors

SavantIC

📥 Download Datasheet

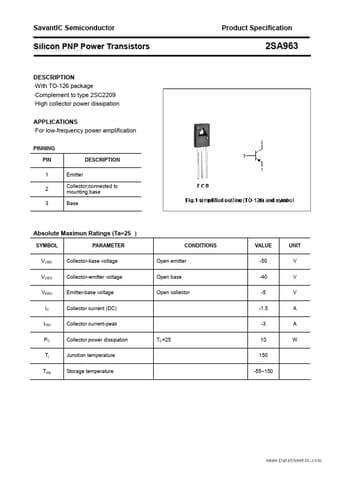

2SA963 Datasheet Preview — Preview of 2SA963 PDF

Datasheet Details

Part number	2SA963
Manufacturer	SavantIC
File Size	164.24 KB
Description	Silicon POwer Transistors
Datasheet	2SA963_SavantIC.pdf

2SA963 Product details

Description

With TO-126 package Complement to type 2SC2209 High collector power dissipation APPLICATIONS For low-frequency power amplification PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION Absolute Maximun Ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-peak Collector power dissipation Junction temperature Storage temperature
