2SA1805 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SA1805 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA1805
Manufacturer SavantIC
File Size 186.16 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1805_SavantIC.pdf

2SA1805 Product details

Description

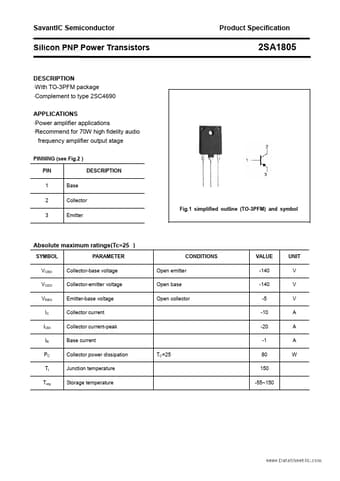

With TO-3PFM package Complement to type 2SC4690 APPLICATIONS Power amplifier applications Recommend for 70W high fidelity audio frequency amplifier output stage PINNING (see Fig.2 ) PIN 1 2 3 Base Collector Fig.1 simplified outline (TO-3PFM) and symbol Emitter DESCRIPTION Absolute maximum ratings(Tc=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base curr
