Datasheet Details
| Part number | 2SA1645 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 130.88 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SA1645_SavantIC.pdf
|
| Part number | 2SA1645 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 130.88 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
2SA1645_SavantIC.pdf
|

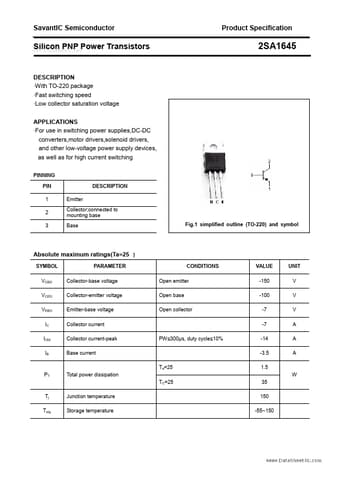

With TO-220 package Fast switching speed Low collector saturation voltage APPLICATIONS For use in switching power supplies,DC-DC converters,motor drivers,solenoid drivers, and other low-voltage power supply devices, as well as for high current switching PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Co
