2SA1333 Datasheet PDF (SILICON POWER TRANSISTOR)

2SA1333 - SILICON POWER TRANSISTOR

Description

With MT-200 package High power dissipation APPLICATIONS Audio and general purpose applications PINNING (see Fig.2) PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (MT-200) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VE

Datasheet Details

Part number	2SA1333
Manufacturer	SavantIC
File Size	147.77 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SA1333 Datasheet

📁 Similar Datasheet

2SA1333 - POWER TRANSISTOR (Inchange Semiconductor)

2SA1330 - PNP SILICON EPITAXIAL TRANSISTOR (NEC)

2SA1330 - PNP Silicon Transistor (Kexin)

2SA1331 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SA1331 - PNP Epitaxial Planar Silicon Transistors (Kexin)

2SA1332 - POWER TRANSISTOR (Inchange Semiconductor)

2SA1337 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)

2SA1338 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SA1338 - PNP Epitaxial Planar Silicon Transistors (Kexin)

2SA1339 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

Full PDF Text Transcription

Click to expand full text

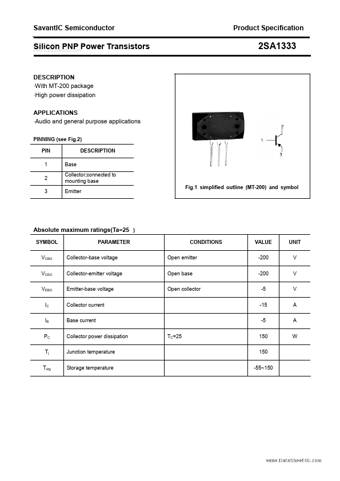

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SA1333 DESCRIPTION ·With MT-200 package ·High power dissipation APPLICATIONS ·Audio and general purpose applications PINNING (see Fig.2) PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (MT-200) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE -200 -200 -5 -15 -5 150 150 -55~150 UNIT V V V A A W SavantIC Semiconductor www.DataSheet4U.

Published: Feb 12, 2009 |
