| Part number | 2SA1305 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 137.57 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SA1305_SavantIC.pdf
|
| Part number | 2SA1305 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 137.57 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
2SA1305_SavantIC.pdf
|

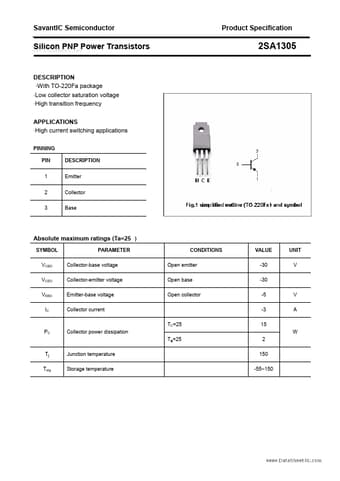

With TO-220Fa package Low collector saturation voltage High transition frequency APPLICATIONS High current switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperature Storage temperature 2 150 -55~150 CONDITIONS Open emitter Open base
