| Part number | 2SA1304 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 179.10 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SA1304_SavantIC.pdf
|
| Part number | 2SA1304 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 179.10 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
2SA1304_SavantIC.pdf
|

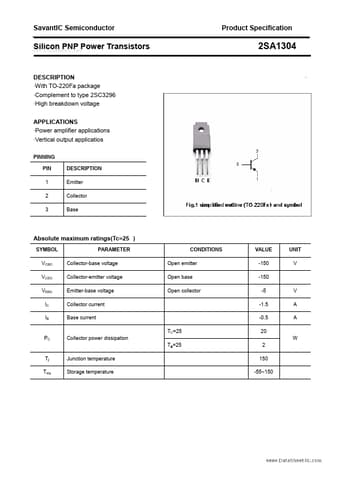

With TO-220Fa package Complement to type 2SC3296 High breakdown voltage APPLICATIONS Power amplifier applications Vertical output applicatios PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings(Tc=25 ) SYMBOL VCBO VCEO VEBO IC IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperature Storage temperature 2 150 -55~150 C
