2SA1220A, 2SA1220 - SILICON POWER TRANSISTOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SA1220A, 2SA1220. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA1220A, 2SA1220
Manufacturer SavantIC
File Size 161.51 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1220_SavantIC.pdf
Note This datasheet PDF includes multiple part numbers: 2SA1220A, 2SA1220.
Please refer to the document for exact specifications by model.

2SA1220A Product details

Description

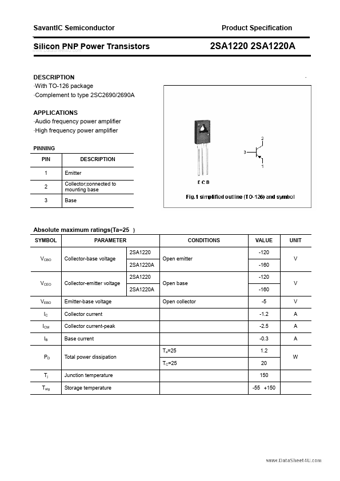

With TO-126 package Complement to type 2SC2690/2690A APPLICATIONS Audio frequency power amplifier High frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO PARAMETER 2SA1220 Collector-base voltage 2SA1220A 2SA1220 VCEO VEBO IC ICM IB PD Tj Tstg Collector-emitter voltage 2SA1220A Emitter-base voltage Collector current Collector current-peak Base current Ta=25 Total power dissipat
