2N6833 - Silicon Power Transistor

📥 Download Datasheet

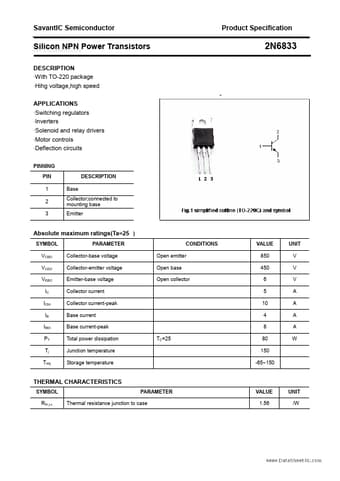

Preview of 2N6833 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2N6833
Manufacturer SavantIC
File Size 118.88 KB
Description Silicon Power Transistor
Datasheet download datasheet 2N6833_SavantIC.pdf

2N6833 Product details

Description

With TO-220 package Hihg voltage,high speed APPLICATIONS Switching regulators Inverters Solenoid and relay drivers Motor controls Deflection circuits PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION 2N6833 Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB IBM PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Base current
