STK621-033N-E Inverter Hybrid

STK621-033N-E Description

Ordering number : ENA2127 STK621-033N-E Thick-Film Hybrid IC 3-phase Inverter Motor Drive Inverter Hybrid IC Overview This IC is a 3-phase inverter.

STK621-033N-E Features

* Integrates power elements (IGBT and FRD), pre-driver, and protective circuit.
* Protective circuits including overcurrent (bus line), pre-drive low voltage protection are built in.
* Direct input of CMOS level control signals without an insulating circuit (photocoupler, etc

📥 Download Datasheet

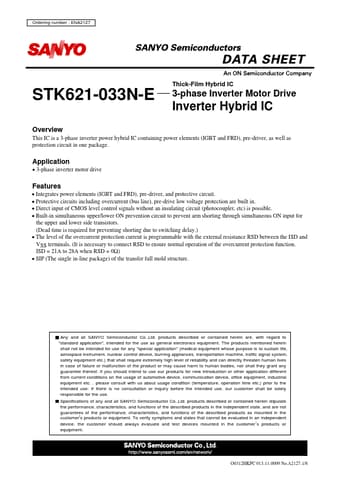

Preview of STK621-033N-E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK621-033N-E
Manufacturer
Sanyo
File Size
73.75 KB
Datasheet
STK621-033N-E-Sanyo.pdf
Description
Inverter Hybrid
