STK4141V AF Power Amplifier

STK4141V Description

Ordering number: EN 1649C Thick Film Hybrid IC STK4141V AF Power Ampliļ¬er (Split Power Supply) (25W + 25W min, THD = 0.08%) .

STK4141V Features

* The STK4102II series (THD=0.4%), STK4201V series (THD=0.08%) and STK4141X series (THD=0.02%) are pin-compatible. Once the PCB pattern is designed, you can easily satisfy the repuirements for new sets simply by changing the IC.
* Built-in muting circuit to cut off various kinds of p

📥 Download Datasheet

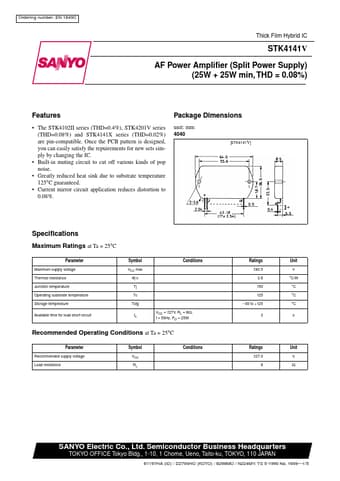

Preview of STK4141V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4141V
Manufacturer
Sanyo
File Size
375.39 KB
Datasheet
STK4141V_Sanyo.pdf
Description
AF Power Amplifier
