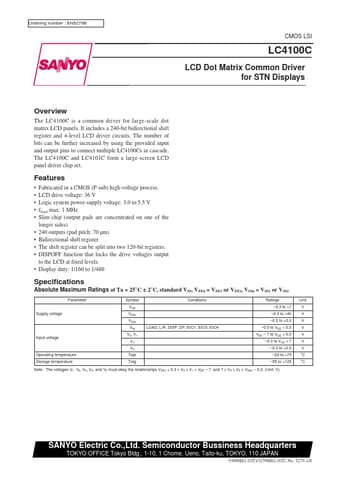

LC4100 - LCD Dot Matrix Common Driver

Sanyo

Datasheet Details

Fabricated in a CMOS (P-sub) high-voltage process. LCD drive voltage: 36 V Logic system power-supply voltage: 3.0 to 5.5 V fload max: 1 MHz Slim chip (output pads are concentrated on one of the longer sides) 240 outputs (pad pitch: 70 µm) Bidirectional shift register The shift register can be split into two 120-bit registers.
