LC36256AML-85 - 256 K (32768 words x 8 bits) SRAM

Name: LC36256AML-85
SKU: LC36256AML-85-391885

Sanyo

The LC36256AML-85 by Sanyo is a 256 K (32768 words x 8 bits) SRAM. Below is the official datasheet preview.

Datasheet Details

Part number	LC36256AML-85
Manufacturer	Sanyo
File Size	99.91 KB
Description	256 K (32768 words x 8 bits) SRAM
Datasheet	LC36256AML-85_SanyoSemiconDevice.pdf

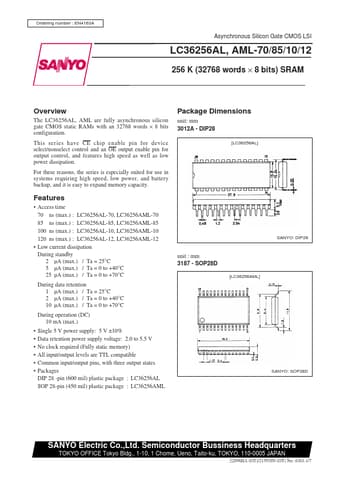

Additional preview pages of the LC36256AML-85 datasheet.

high speed as well as low power dissipation. For these reasons, the series is especially suited for use in systems requiring high speed, low power, and battery backup, and it is easy to expand memory capacity. Package Dimensions unit: mm 3012A - DIP28 [LC36256AL] Features.
Access time 70 ns (max. ) : LC36256AL-70, LC36256AML-70 85 ns (max. ) : LC36256AL-85, LC36256AML-85 100 ns (max. ) : LC36256AL-10, LC36256AML-10 120 ns (max. ) : LC36256AL-12, LC36256AML-12.
Low current dissipa.
