LB1667M - Two-Phase Unipolar Drive Brushless Motor Drivers

Sanyo

📥 Download Datasheet

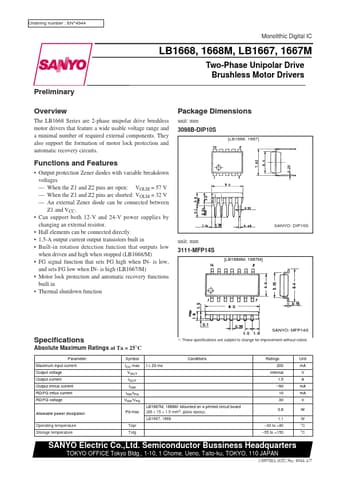

LB1667M Datasheet Preview — Preview of LB1667M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LB1667M
Manufacturer	Sanyo
File Size	128.73 KB
Description	Two-Phase Unipolar Drive Brushless Motor Drivers
Datasheet	LB1667M_SanyoSemiconDevice.pdf

LB1667M Product details

Features

Output protection Zener diodes with variable breakdown voltages.
When the Z1 and Z2 pins are open: VOLM = 57 V.
When the Z1 and Z2 pins are shorted: VOLM = 32 V.
An external Zener diode can be connected between Z1 and VCC.
Can support both 12-V and 24-V power supplies by changing an external resistor.
Hall elements can be connected directly.
1.5-A output current output transistors built in.
Built-in rotation detection fu.
