LB1635M - Low-Saturation Bidirectional Motor Drive

LB1635M Description

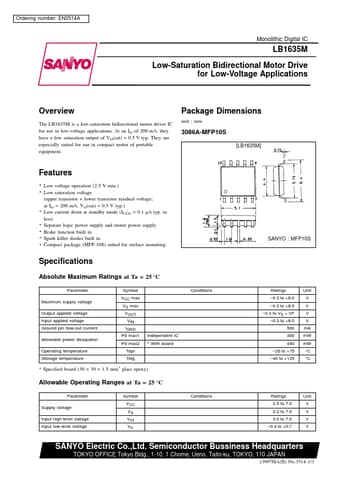

Ordering number: EN3514A Monolithic Digital IC LB1635M Low-Saturation Bidirectional Motor Drive for Low-Voltage Applications Overview The LB1635M i.

LB1635M Features

* . Low voltage operation (2.5 V min. ) . Low saturation voltage . . . . . (upper transistor + lower transistor residual voltage; at IO = 200 mA, VO(sat) = 0.5 V typ. ) Low current drain at standby mode (ICCO = 0.1 µA typ. or less) Separate logic power supply and motor power supply Brake function built

LB1635M Applications

* Overview The LB1635M is a low-saturation bidirectional motor driver IC for use in low-voltage applications. At an IO of 200 mA, they have a low saturation output of VO(sat) = 0.5 V typ. They are especially suited for use in compact motor of portable equipment. Package Dimensions unit : mm 3086A-M
