LB11820M - Direct PWM Drive Brushless Pre-Driver

Key Features

  • Three-phase bipolar drive.
  • Direct PWM drive.
  • Built-in braking function (Short braking).
  • Forward/reverse switching function.
  • Reverse motion mode protection circuit.
  • Full complement of protection circuits, include current limiter, low-voltage protection, and motor constraint (rotor locking) protection circuits.
  • Supports control from either a command voltage or a PWM duty input. SANYO: MFP30SD(375mil) Specifications Absolute Maximum.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LB11822 Three-Phase Brushless Motor Driver Sanyo Semicon Device
LB11826 Three-Phase Brushless Motor Driver Sanyo Semicon Device
LB11826 Three-Phase Brushless Motor Driver ON Semiconductor
LB11850V Monolithic Digital IC Sanyo Semicon Device
LB11850VA Monolithic Digital IC Sanyo Semicon Device

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LB11820 Direct PWM Drive Brushless Pre-Driver
LB11823M Direct PWM Drive Brushless Motor Predriver
LB11824 Direct PWM Drive Brushless Motor Predriver
LB11824M Direct PWM Drive Brushless Motor Predriver
LB11817 Three-Phase Full-Wave Linear Drive

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

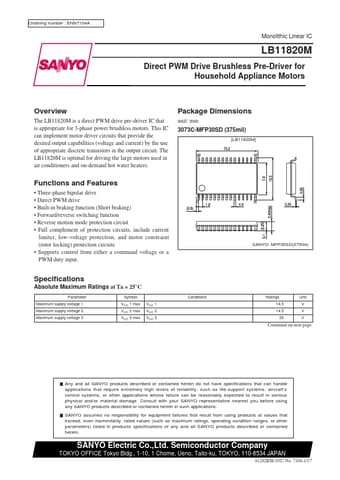

Ordering number : ENN7104A Monolithic Linear IC LB11820M Direct PWM Drive Brushless Pre-Driver for Household Appliance Motors Overview The LB11820M is a direct PWM drive pre-driver IC that is appropriate for 3-phase power brushless motors. This IC can implement motor driver circuits that provide the desired output capabilities (voltage and current) by the use of appropriate discrete transistors in the output circuit. The LB11820M is optimal for driving the large motors used in air conditioners and on-demand hot water heaters.
