LA8608V - 1.8 V Low-Voltage Narrowband FM-IF System

Sanyo

📥 Download Datasheet

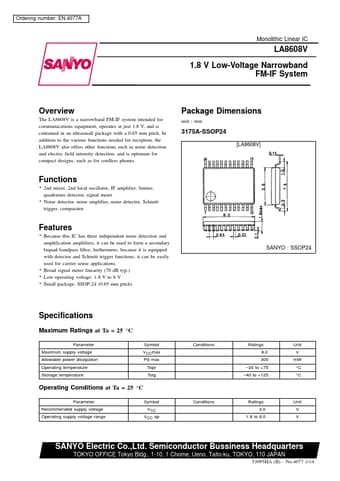

LA8608V Datasheet Preview — Preview of LA8608V PDF

Datasheet Details

Part number	LA8608V
Manufacturer	Sanyo
File Size	310.99 KB
Description	1.8 V Low-Voltage Narrowband FM-IF System
Datasheet	LA8608V_SanyoSemiconDevice.pdf

LA8608V Product details

Description

Unit (resistance:Ω) Pin No.1 Pin Name CRYSTAL Pin Voltage [V] VCC Internal equivalent circuit Remarks Forms a Colpitts oscillator.2 OSC VCC 0.7 3 MIX-OUT VCC 0.3 MIX buffer output 4 VREF 1.2V Regulated voltage output 5 6 VCC IF-IN VCC VCC 0.9 Power supply IF amp input 7 D.C1 VCC 0.9 IF amp DC feedback 8 D.C2 VCC 0.9 9 COMP (+) Comparator threshold setting pin; set by external resistance 10 COMP-OUT Comparator output; open coll

Features

. Because this IC has three independent noise detection and . . . amplification amplifiers, it can be used to form a secondary biquad bandpass filter; furthermore, because it is equipped with detector and Schmitt trigger functions, it can be easily used for carrier sense.
