LA7910 - Monolithic Linear IC

Features

  • 2 inputs and 4 outputs.
  • Low output saturation voltage : 0.25V typ. , IO=60mA.
  • Compact 9-pin single-end package. 0.51 min (4.5) 3.2 5.7 max 3.0 0.25 1.35 SANYO : SIP9 Specifications Maximum Ratings at Ta = 25˚C Parameter Maximum supply voltage Maximum load current Maximum supply current VCC2 Input current Allowable power dissipation Operating temperature Storage temperature Symbol V9 max I1 max, I2 max, I7 max, I8 max I6 max I3 max, I4 max Pd max Topr Tstg Condit.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LA79106V Tuner Sanyo Electric
LA79107V Mixers / Oscillators Sanyo Electric
LA7912 LA7912 Sanyo Semiconductor
LA7913 LA7913 Sanyo Semiconductor Corporation
LA79200V Monolithic Linear IC Sanyo Semicon Device

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LA7911 TV Tuner Controller
LA7915 PERIPHERAL CIRCUIT
LA7916 Peripheral Circuit
LA7920 TV Tuner Band Selector
LA7930 LA7930

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

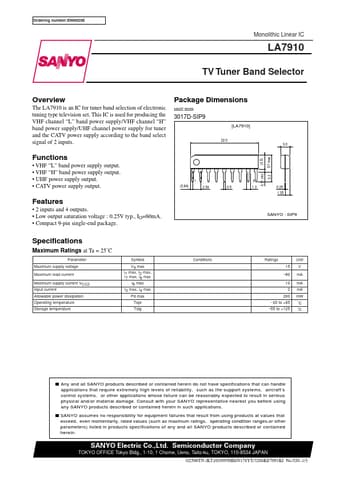

Ordering number:ENN920E Monolithic Linear IC LA7910 TV Tuner Band Selector Overview The LA7910 is an IC for tuner band selection of electronic tuning type television set. This IC is used for producing the VHF channel “L” band power supply/VHF channel “H” band power supply/UHF channel power supply for tuner and the CATV power supply according to the band select signal of 2 inputs. Package Dimensions unit:mm 3017D-SIP9 [LA7910] 22.0 Functions • VHF “L” band power supply output. • VHF “H” band power supply output. • UHF power supply output. • CATV power supply output. 1 (0.84) 2.54 0.5 9 1.3 Features • 2 inputs and 4 outputs. • Low output saturation voltage : 0.25V typ., IO=60mA. • Compact 9-pin single-end package. 0.51 min (4.5) 3.2 5.7 max 3.0 0.25 1.
