LA76818 - Monolithic Linear IC

Download the LA76818 datasheet PDF. This datasheet also covers the LA76818A variant, as both devices belong to the same monolithic linear ic family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Single crystal multiformat system that supports the different TV broadcast formats used worldwide Multiformat system : LA76818A (YCbCr support).
  • Adjustment-free VIF/SIF, audio trap/audio bandpass filters.
  • Adjustment-free horizontal resonator system.
  • Simplified SG.
  • Supply voltage : VCC = 5V/9V.
  • VIF/SIF Adjustment-free VCO, 4-mode audio trap/audio bandpass filter, buzz canceller RF AGC/video level SIF system automatic discrimination (The LA797.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LA76818A_Sanyo.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LA76818N VIF/SIF/Y/C/Deflection/CbCr IN/EW Implemented in a Single Chip Sanyo Semicon Device
LA76810A VIF/SIF/Y/Deflection Sanyo Electric
LA76814 VIF/DIF/Y/C/Deflection Implemented Sanyo Electric
LA76805 Video Processor ETC
LA76820 LA76820 ETC

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LA76818A Monolithic Linear IC
LA7681 Single-Chip Signal Processor
LA76810 LA76810
LA7680 Single-Chip Signal Processor
LA76850 Black & White TV IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

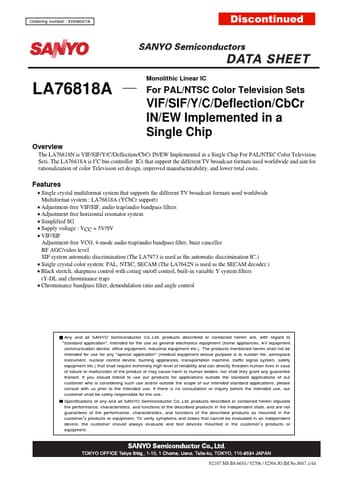

Ordering number : EN08047A LA76818A Monolithic Linear IC For PAL/NTSC Color Television Sets VIF/SIF/Y/C/Deflection/CbCr IN/EW Implemented in a Single Chip Overview The LA76818N is VIF/SIF/Y/C/Deflection/CbCr IN/EW Implemented in a Single Chip For PAL/NTSC Color Television Sets. The LA76818A is I2C bus controller ICs that support the different TV broadcast formats used worldwide and aim for rationalization of color Television set design, improved manufacturability, and lower total costs.
