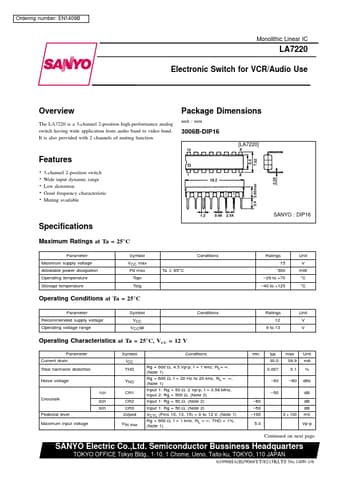

LA7220 - Electronic Switch for VCR/Audio Use

Sanyo

Datasheet Details

Part number	LA7220
Manufacturer	Sanyo
File Size	82.18 KB
Description	Electronic Switch for VCR/Audio Use
Datasheet	LA7220_SanyoSemiconDevice.pdf

. 3-channel 2-position switch . Wide input dynamic range . Low distortion . Good frequency characteristic . Muting available SANYO : DIP16 Specifications Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Allowable power dissipation Operating temperature Storage temperature Symbol VCC max Pd max Topr Tstg Ta % 65°C Conditions Ratings 15 500.
20 to +70.
40 to +125 Unit V mW °C °C Operating Conditions at Ta = 25°C Parameter Recommended supply voltage Operating voltage.
