LA6512 High-Voltage Dual Power Operational Amplifiers

LA6512 Description

Ordering number:ENN4424 Monolithic Linear IC LA6512, 6513 High-Voltage Dual Power Operational Amplifiers Overview LA6512 (SIP10F) and LA6513 (SIP10).

LA6512 Features

* High output current (IO max=1.0A).
* High gain.
* Equipped with current limiter pin (Adjustable by exter- nal settings).
* Supports single power source operation.
* Withstands high voltages (±30V). Package Dimensions unit:mm 3046B-SIP10F [LA6512] 25.5 24.0

LA6512 Applications

* that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO

📥 Download Datasheet

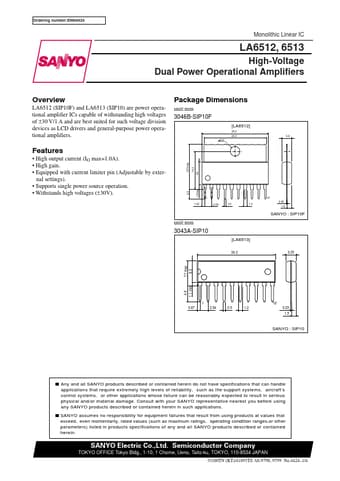

Preview of LA6512 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA6512
Manufacturer
Sanyo
File Size
64.21 KB
Datasheet
LA6512_SanyoSemiconDevice.pdf
Description
High-Voltage Dual Power Operational Amplifiers
