LA1235 Monolithic Linear IC

LA1235 Description

Ordering number : EN873G LA1235 Monolithic Linear IC FM IF System Applications Overview The LA1235 is a high integrated IC developed for use in hig.

LA1235 Features

* S/N = 88dB, distortion factor = 0.015% and has almost all functions required for FM tuner IF stage. The IF amplifier and limiter stage consist of 6 stages of double ended differential amplifier having an excellent AMR, and this stage is followd by the signal meter driver which consists of 4 stages o

📥 Download Datasheet

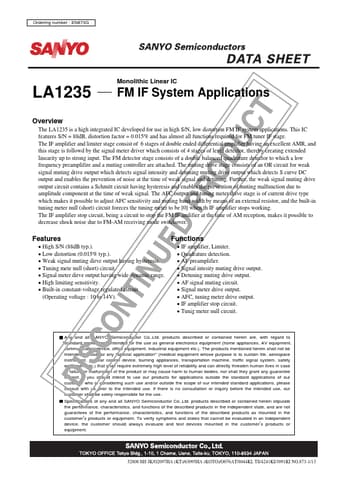

Preview of LA1235 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA1235
Manufacturer
Sanyo
File Size
285.73 KB
Datasheet
LA1235-Sanyo.pdf
Description
Monolithic Linear IC
