LA1136NM, LA1136N AM Tuners

LA1136NM Description

Ordering number: EN 3507 Monolithic Linear IC LA1136N, 1136NM, 1137N, 1137NM AM Tuners for Car Radios and Home Stereos Overview The LA1136N/NM and L.

LA1136NM Features

* . Excellent cross modulation characteristic: Meets the requirements for preventing not only adjacent-channel interference but also interference caused by all channels . within broadcast band. Narrow-band signal meter output: Usable as auto search stop . signal. Has linearity up to 100 dBµ. Local osc

LA1136NM Applications

* Functions . MIX . OSC (with ALC) . IF amplifier . Detector . AGC (normal) . RF wide-band AGC . Auto search stop signal (Signal meter output) . Local oscillation buffer output . IF band switching circuit (for LA1136N only) . IF count buffer . Stop detector output (can be set independently) . Tweet p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LA1136NM, LA1136N. Please refer to the document for exact specifications by model.

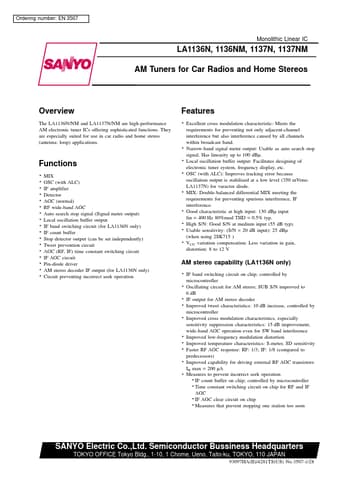

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA1136NM, LA1136N
Manufacturer
Sanyo
File Size
561.09 KB
Datasheet
LA1136N-Sanyo.pdf
Description
AM Tuners
Note
This datasheet PDF includes multiple part numbers: LA1136NM, LA1136N.
Please refer to the document for exact specifications by model.
