EMH2308 - P-Channel Silicon MOSFET

Product Overview

Sanyo

Part number	EMH2308
Manufacturer	Sanyo
File Size	271.49 KB
Description	P-Channel Silicon MOSFET

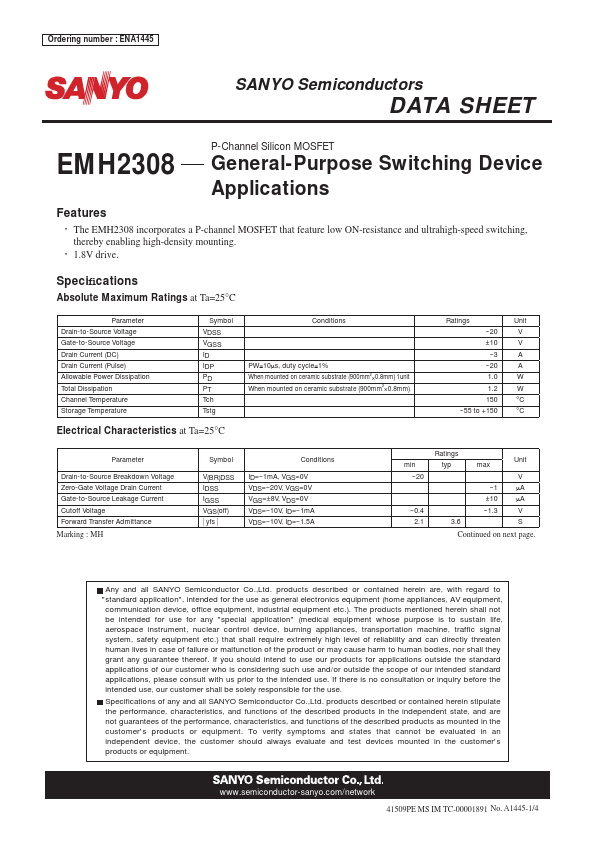

Datasheet	EMH2308 Datasheet

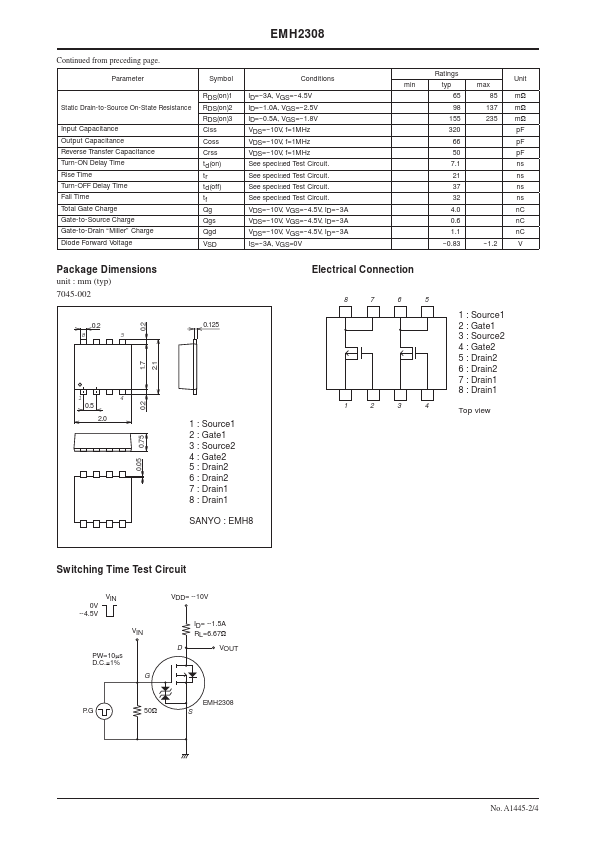

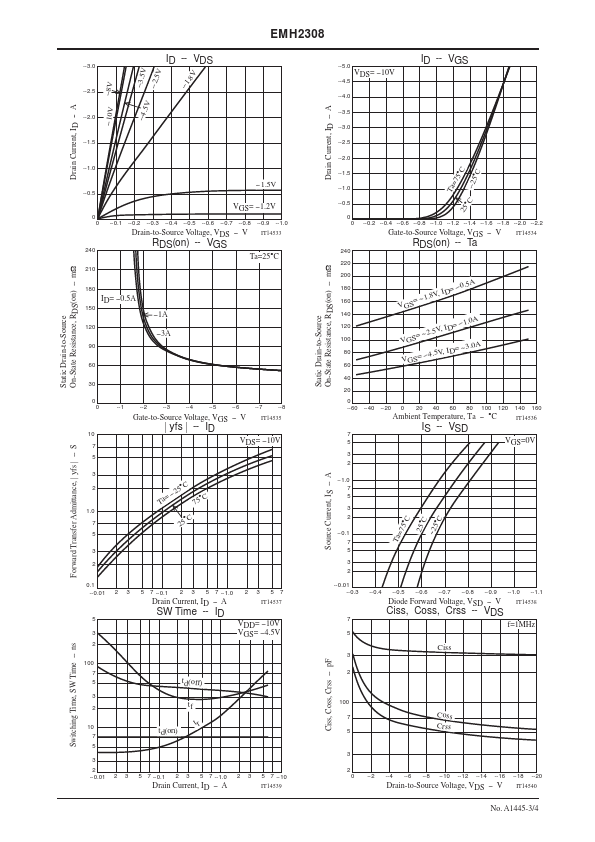

Additional preview pages of the EMH2308 datasheet.

The EMH2308 incorporates a P-channel MOSFET that feature low ON-resistance and ultrahigh-speed switching, thereby enabling high-density mounting.
1.8V drive. Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Total Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD PT Tch Tstg Electrical Characteristics at Ta=25°C Condit.
