C4919 2SC4919

C4919 Description

Ordering number:EN4765 NPN Epitaxial Planar Silicon Transistor 2SC4919 Muting Circuit Applications .

C4919 Features

* Very small-sized package permitting 2SC4919applied sets to be made smaller and slimmer.
* Small output capacitance.
* Low collector-to-emitter saturation voltage.
* Small ON resistance. Package Dimensions unit:mm 2106A [2SC4909] 0.3 0.75 0.6 0 to 0.1 0.4 0.8 0.4 1.6 0.1max 0.5

📥 Download Datasheet

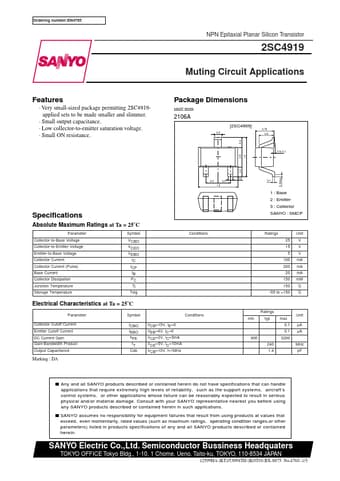

Preview of C4919 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4919
Manufacturer
Sanyo
File Size
98.02 KB
Datasheet
C4919-Sanyo.pdf
Description
2SC4919
