C3918 - 2SC3918

Features

  • On-chip bias resistance : R1=2.2kΩ, R2=10kΩ.
  • Small-sized package : SPA.
  • Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1524/2SC3918] ( ) : 2SA1524 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Electrical Chara.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C3902 2SC3902 Sanyo Semicon Device
C3904 2SC3904 Panasonic
C3907 2SC3907 SavantIC
C392 SILICON CONTROLLED RECTIFIER National Electronics
C3920 2SC3920 Sanyo Semicon Device

Other Datasheets by SANYO (now Panasonic)

Part Number Description
C3912 2SC3912
C3913 2SC3913
C3914 2SC3914
C3915 2SC3915
C3916 2SC3916

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

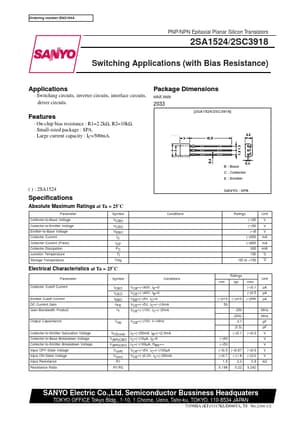

Ordering number:EN2164A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1524/2SC3918 Switching Applications (with Bias Resistance) Applications · Switching circuits, inverter circuits, interface circuits, driver circuits. Features · On-chip bias resistance : R1=2.2kΩ, R2=10kΩ. · Small-sized package : SPA. · Large current capacity : IC=500mA.
