A1541 - 2SA1541

Features

  • High gain-bandwidth product : fT=300MHz.
  • High breakdown voltage : VCEO=200Vmin.
  • Small reverse transfer capacitance and excellent high frequency characteristics : Cre=2.2pF/NPN, 2.7pF/ PNP.
  • Complementary PNP and NPN types.
  • Adoption of FBET process.
  • Micaless type : TO-126 plastic package. ( ) : 2SA1541 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A1546 2SA1546 NEC
A1547 2SA1547 Rohm
A150 Attenuator Relay Teledyne
A1500 A Series Professional Power Amplifier Chevin
A1503S-1W DC-DC Power Module K-CUT

Other Datasheets by SANYO (now Panasonic)

Part Number Description
A1540 2SA1540
A1507 2SA1507
A1518 2SA1518
A1519 2SA1519
A1520 2SA1520

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

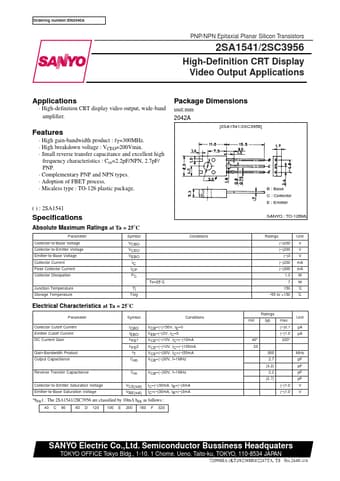

Ordering number:EN2440A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1541/2SC3956 High-Definition CRT Display Video Output Applications Applications · High-definition CRT display video output, wide-band amplifier. Features · High gain-bandwidth product : fT=300MHz. · High breakdown voltage : VCEO=200Vmin. · Small reverse transfer capacitance and excellent high frequency characteristics : Cre=2.2pF/NPN, 2.7pF/ PNP. · Complementary PNP and NPN types. · Adoption of FBET process. · Micaless type : TO-126 plastic package.
