A1538 - 2SA1538

Sanyo

📥 Download Datasheet

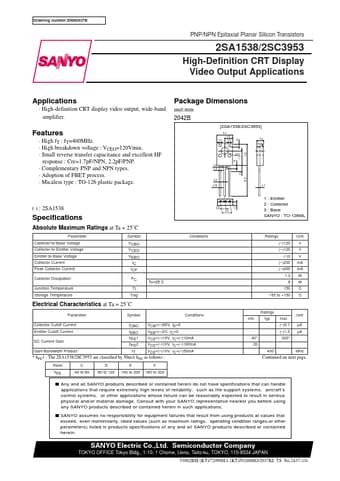

A1538 Datasheet Preview — Preview of A1538 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	A1538
Manufacturer	Sanyo
File Size	38.51 KB
Description	2SA1538
Datasheet	A1538-Sanyo.pdf

A1538 Product details

Features

High fT : fT=400MHz.
High breakdown voltage : VCEO=120Vmin.
Small reverse transfer capacitance and excellent HF response : Cre=1.7pF/NPN, 2.2pF/PNP.
Complementary PNP and NPN types.
Adoption of FBET process.
Micaless type : TO-126 plastic package. Package Dimensions unit:mm 2042B [2SA1538/2SC3953] 8.0 4.0 1.0 1.0 3.3 1.5 1.4 3.0 7.5 15.5 11.0 3.0 1.6 0.8 0.8 0.75 0.7 123 ( ) : 2SA1538 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter.
