A1292 2SA1292

A1292 Description

Ordering number:EN2370 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1292/2SC3256 60V/15A High-Speed Switching Applications Applications * Var.

A1292 Features

* Low saturation voltage.
* Excellent dependence of hFE on current.
* Fast switching time. ( ) : 2SA1292 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector C

A1292 Applications

* Applications
* Various inductance, lamp drivers for electrical equipment.
* Inverters, converters (strobo, flash, fluorescent lamp lighting circuit).
* Power amp (high-power care stereo, motor control).
* High-speed siwtching (switching regulators, driver). Package Dimensions unit:

📥 Download Datasheet

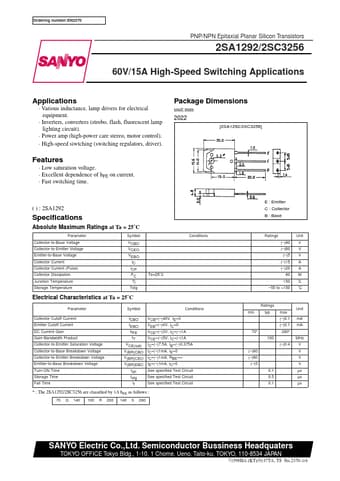

Preview of A1292 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1292
Manufacturer
Sanyo
File Size
97.10 KB
Datasheet
A1292-Sanyo.pdf
Description
2SA1292
