LA77000V - VHF Band RF Modulator

SANYO (now Panasonic)

Datasheet Details

Part number	LA77000V
Manufacturer	SANYO (now Panasonic)
File Size	200.75 KB
Description	VHF Band RF Modulator
Datasheet	LA77000V Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
LA7710	SECAM /PAL (Quasi-Parallel) Audio IF Circuit	Sanyo
LA7751	LA7751	Sanyo
LA7755	LA7755	Sanyo
LA7770	FSK Receiver	Sanyo
LA7775M	Wideband FSK Receiver	Sanyo

Other Datasheets by SANYO (now Panasonic)

Part Number	Description
LA7760	LA7760 / Japanese
LA7761	LA7761 / dbx NR / Japanese
LA7765	Decoders MTS Stereo TV Sound
LA7795T	AGC Amplifier
LA7040	VTR Processor IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

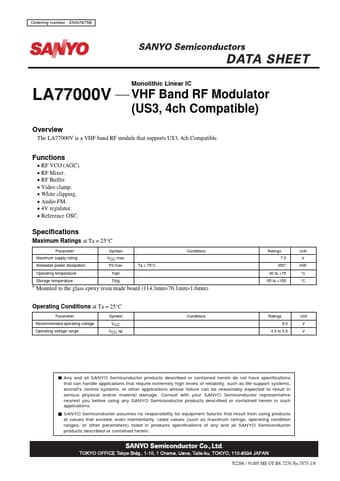

Ordering number : ENN7875B Monolithic Linear IC LA77000V Overview VHF Band RF Modulator (US3, 4ch Compatible) The LA77000V is a VHF band RF module that supports US3, 4ch Compatible. Functions • RF VCO (AGC). • RF Mixer. • RF Buffer. • Video clamp. • White clipping. • Audio FM. • 4V regulator. • Reference OSC. Specifications Maximum Ratings at Ta = 25°C Parameter Maximum supply rating Allowable power dissipation Operating temperature Storage temperature Symbol VCC max Pd max Topr Tstg Ta ≤ 75°C Conditions Ratings 7.0 350* -20 to +75 -55 to +150 Unit V mW °C °C * Mounted to the glass epoxy resin made board (114.3mm×76.1mm×1.6mm) Operating Conditions at Ta = 25°C Parameter Recommended operating voltage Operating voltage range Symbol VCC VCC op Conditions Ratings 5.0 4.5 to 5.
