C3995 - 2SC3995

Key Features

  • High speed (tf=100ns typ).
  • High reliability (adoption of HVP process).
  • High breakdown voltage (VCBO=1500V).
  • Adoption of MBIT process. Package Dimensions unit:mm 2048B [2SC3995] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Tc=25˚C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C3990 2SC3990 Sanyo Semicon Device
C3991 2SC3991 Sanyo
C3992 2SC3992 Sanyo
C3993 2SC3993 Sanyo
C3994 2SC3994 Sanyo

Other Datasheets by SANYO (now Panasonic)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

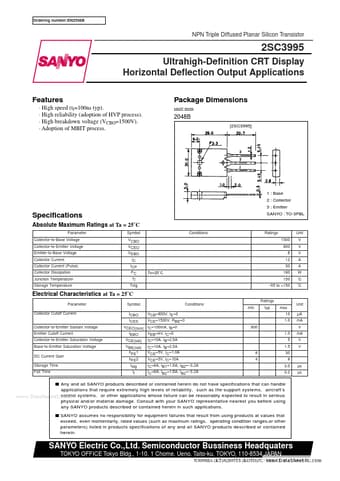

Ordering number:EN2508B NPN Triple Diffused Planar Silicon Transistor 2SC3995 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applications Features · High speed (tf=100ns typ). · High reliability (adoption of HVP process). · High breakdown voltage (VCBO=1500V). · Adoption of MBIT process.
