VP513 - Wideband Output Module

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

VP513 Wideband Output Module by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – VP513

Datasheet Details

Part number	VP513
Manufacturer	Sanyo Semicon Device
File Size	163.88 KB
Description	Wideband Output Module
Datasheet	VP513 Datasheet

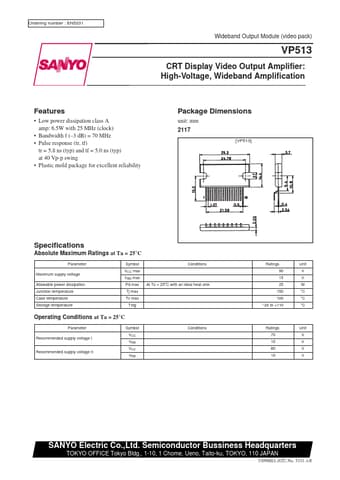

Additional preview pages of the VP513 datasheet.

Product details

Features

Low power dissipation class A amp: 6.5W with 25 MHz (clock).
Bandwidth f (.
3 dB) = 70 MHz.
Pulse response (tr, tf) tr = 5.8 ns (typ) and tf = 5.0 ns (typ) at 40 Vp-p swing.
Plastic mold package for excellent reliability Package Dimensions unit: mm 2117 [VP513] Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Allowable power dissipation Junction temperature Case temperature Storage temperature Symbol VCC max VBB.
