STK672-110 Two-Phase Stepping Motor Driver (Square Wave Drive) Output Current: 1.8 A

STK672-110 Description

Ordering number : EN6041 Thick-Film Hybrid IC STK672-110 Unipolar Fixed-Current Chopper (Self-Excited PWM) Scheme and Built-in Phase Signal Distribu.

STK672-110 Features

* power MOSFETs in the output stage and a built-in phase signal distribution IC. The incorporation of a phase distribution IC allows the STK672-110 to control the speed of the motor based on the frequency of an external input clock signal. It supports two types of excitation for motor control: 2-phase

STK672-110 Applications

* Two-phase stepping motor drive in send/receive facsimile units
* Paper feed in copiers, industrial robots, and other applications that require 2-phase stepping motor drive
* All inputs are Schmitt inputs and 40-kΩ (typical:
* 50 to +100%) pull-up resistors are built

📥 Download Datasheet

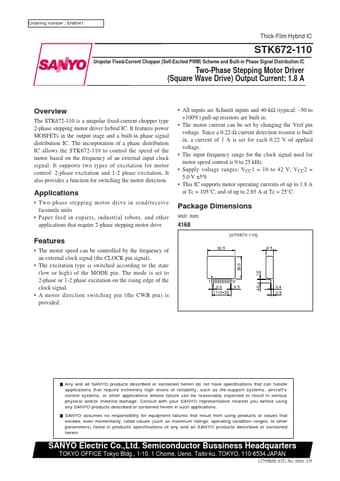

Preview of STK672-110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK672-110
Manufacturer
Sanyo Semicon Device
File Size
134.56 KB
Datasheet
STK672-110_SanyoSemiconDevice.pdf
Description
Two-Phase Stepping Motor Driver (Square Wave Drive) Output Current: 1.8 A
