STK672-060 Thick-Film Hybrid IC

STK672-060 Description

Ordering number : ENN7441A Thick-Film Hybrid IC STK672-060 Stepping Motor Driver (Sine Wave Drive) Output Current: 1.2 A (No Heat Sink *) Unipolar.

STK672-060 Features

* a built-in microstepping controller that implements unipolar constant current PWM drive. Since this IC includes a 4-phase distribution controller for stepping motors, it can contribute not only to system simplification but to circuit standardization as well. The STK672-060 supports the 2 phase, 1-2

STK672-060 Applications

* Facsimile unit stepping motor drive for both transmission and reception
* Paper feed and optical system stepping motor drive in copiers
* Laser printer drum drive
* Printer carriage stepping motor drive
* X/Y plotter pen drive
* Other stepping motor

📥 Download Datasheet

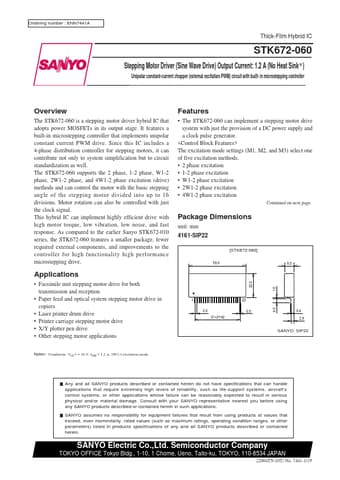

Preview of STK672-060 PDF
